Birtley CB90 Cavity Lintel 2100mm

Birtley CB90 Cavity Lintel 2100mm
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Length: 2100mm
  • Cavity width: 90-105mm
  • Load capacity: 20kN
  • Galvanised steel cavity lintel
  • Factory-fitted insulation
£541.20
per Each inc VAT
In Stock(Only 2 left)
Unable to load stock information

Birtley CB90 Standard Duty Cavity Wall Lintel - 2100mm

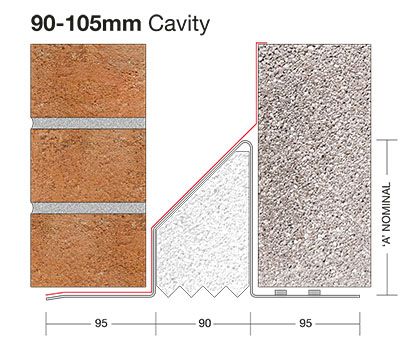

The Birtley CB90 is a standard duty steel cavity wall lintel for 90-105mm cavities with 100mm inner and outer leaves. This 2100mm length is 132mm high and is made from S275JR mild steel, hot-dip galvanised to 65 microns, with factory-fitted expanded polystyrene insulation.

It carries a safe working load of 20kN and must be fully bedded on bricklaying mortar with a minimum end bearing of 150mm. It is used with a cavity tray in external walls and is not for point loads or concrete floors. Used for door and window openings in masonry cavity walls where an insulated steel lintel is required.

Specifications

Brand: Birtley
Type: Standard duty cavity wall lintel
Length: 2100mm
Height: 132mm
Cavity Width: 90-105mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Factory-fitted expanded polystyrene
Load Capacity: 20kN
Weight: 8.3kg per metre
Fire Resistance: 60 minutes with a two-coat plaster finish

Key Features

  • For 90-105mm cavity walls
  • 100mm inner and outer leaves
  • 20kN load capacity at 2100mm
  • Hot-dip galvanised mild steel
  • Factory-fitted EPS insulation
  • Minimum 150mm end bearing
  • Use with a cavity tray in external walls

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
