Birtley CB50 Cavity Lintel 1200mm
- Length: 1200mm
- Cavity width: 50-65mm
- Load capacity: 15kN
- Galvanised steel cavity lintel
- Factory-fitted insulation
Birtley CB50 Standard Duty Cavity Wall Lintel - 1200mm

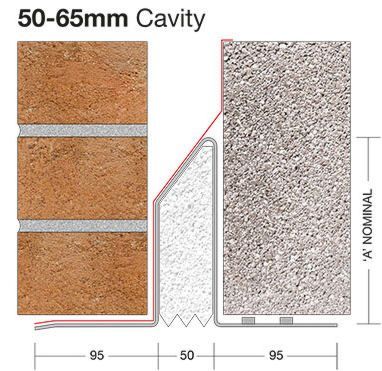

The Birtley CB50 is a standard duty steel cavity wall lintel for 50-65mm cavities with 100mm inner and outer leaves. This 1200mm length is 114mm high and is made from S275JR mild steel, hot-dip galvanised to 65 microns, with factory-fitted expanded polystyrene insulation.
It carries a safe working load of 15kN and must be fully bedded on bricklaying mortar with a minimum end bearing of 150mm. It is used with a cavity tray in external walls and is not for point loads or concrete floors. Used for door and window openings in masonry cavity walls where an insulated steel lintel is required.
Specifications
Brand: Birtley
Type: Standard duty cavity wall lintel
Length: 1200mm
Height: 114mm
Cavity Width: 50-65mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Factory-fitted expanded polystyrene
Load Capacity: 15kN
Weight: 5.8kg per metre
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- For 50-65mm cavity walls
- 100mm inner and outer leaves
- 15kN load capacity at 1200mm
- Hot-dip galvanised mild steel
- Factory-fitted EPS insulation
- Minimum 150mm end bearing
- Use with a cavity tray in external walls
Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
