Birtley CB150 Cavity Lintel 3600mm
- Length: 3600mm
- Cavity width: 150-165mm
- 100mm inner and outer leaves
- Galvanised steel cavity lintel
- Factory-fitted insulation

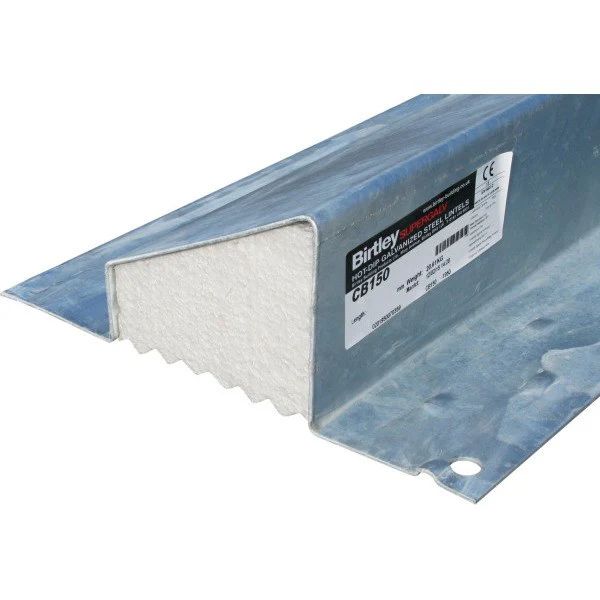

Birtley CB150 Standard Duty Cavity Wall Lintel - 3600mm
The Birtley CB150 is a standard duty steel cavity wall lintel for 150-165mm cavities with 100mm inner and outer leaves. This 3600mm length is made from S275JR mild steel, hot-dip galvanised to 65 microns, with factory-fitted expanded polystyrene insulation.
It must be fully bedded on bricklaying mortar with a minimum end bearing of 150mm. It is used with a cavity tray in external walls and is not for point loads or concrete floors. Used for door and window openings in masonry cavity walls where an insulated steel lintel is required.
Specifications
Brand: Birtley
Type: Standard duty cavity wall lintel
Length: 3600mm
Cavity Width: 150-165mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Factory-fitted expanded polystyrene
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- For 150-165mm cavity walls
- 100mm inner and outer leaves
- Hot-dip galvanised mild steel
- Factory-fitted EPS insulation
- Plaster key on the inner leaf
- Minimum 150mm end bearing
- Use with a cavity tray in external walls
