Birtley CB150 Cavity Lintel 3000mm

Birtley CB150 Cavity Lintel 3000mm
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Length: 3000mm
  • Cavity width: 150-165mm
  • Load capacity: 30kN
  • Galvanised steel cavity lintel
  • Factory-fitted insulation
£1753.20
per Each inc VAT
In Stock
Unable to load stock information

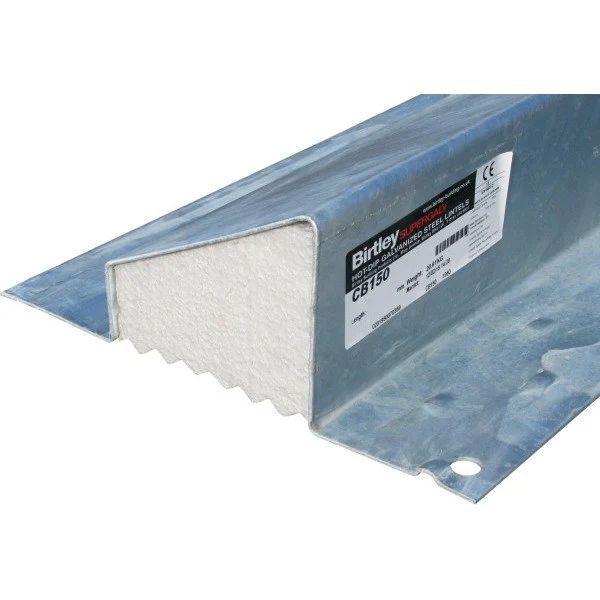

Birtley CB150 Standard Duty Cavity Wall Lintel - 3000mm

The Birtley CB150 is a standard duty steel cavity wall lintel for 150-165mm cavities with 100mm inner and outer leaves. This 3000mm length is 177mm high and is made from S275JR mild steel, hot-dip galvanised to 65 microns, with factory-fitted expanded polystyrene insulation.

It carries a safe working load of 30kN and must be fully bedded on bricklaying mortar with a minimum end bearing of 150mm. It is used with a cavity tray in external walls and is not for point loads or concrete floors. Used for door and window openings in masonry cavity walls where an insulated steel lintel is required.

Specifications

Brand: Birtley
Type: Standard duty cavity wall lintel
Length: 3000mm
Height: 177mm
Cavity Width: 150-165mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Factory-fitted expanded polystyrene
Load Capacity: 30kN
Weight: 14.4kg per metre
Fire Resistance: 60 minutes with a two-coat plaster finish

Key Features

  • For 150-165mm cavity walls
  • 100mm inner and outer leaves
  • 30kN load capacity at 3000mm
  • Hot-dip galvanised mild steel
  • Factory-fitted EPS insulation
  • Plaster key on the inner leaf
  • Minimum 150mm end bearing
  • Use with a cavity tray in external walls

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
