12.5mm Square Edge 1200 X 2400 Fireshield

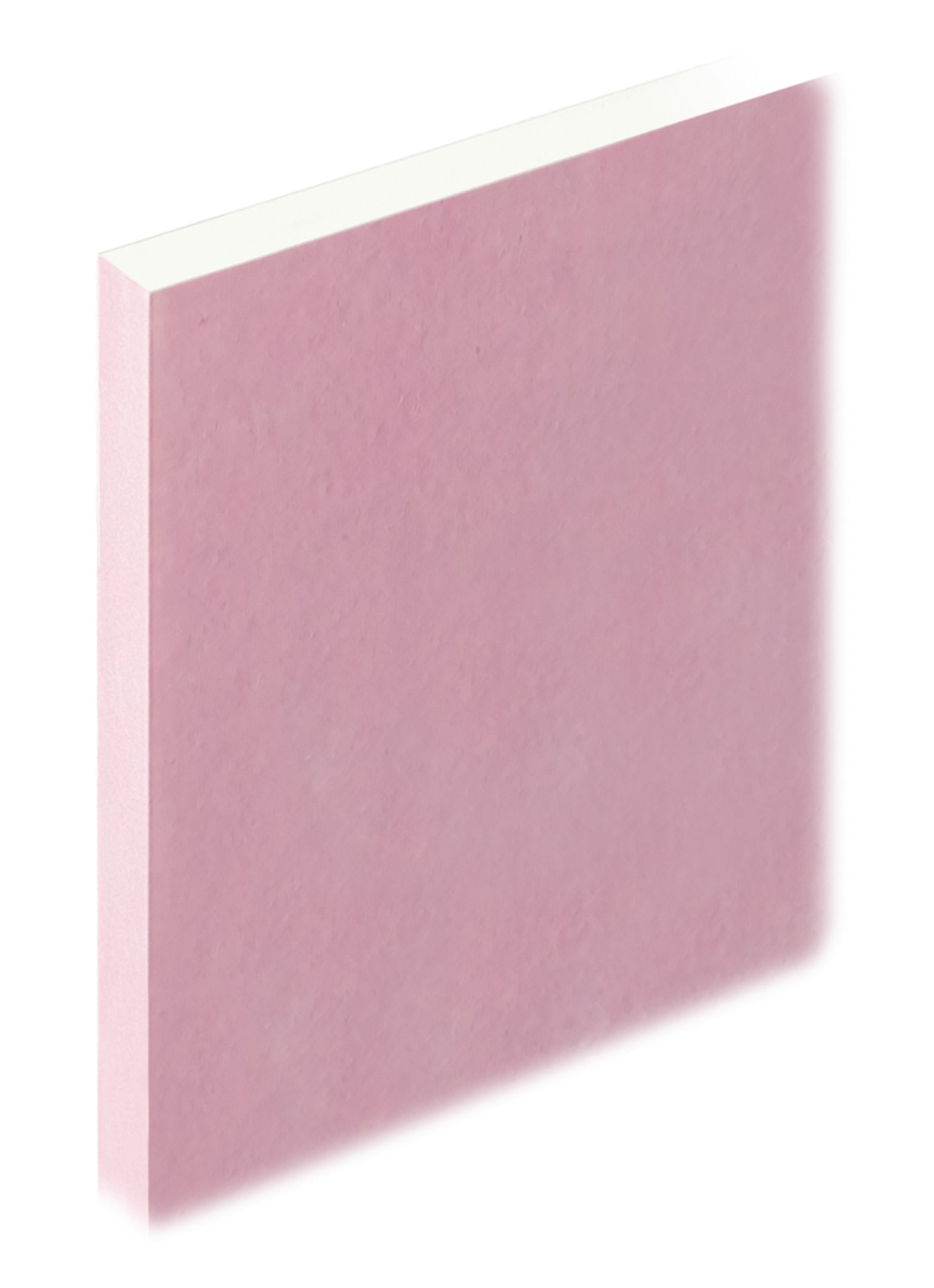

Knauf Fireshield Fire Panel Plasterboard - 12.5mm x 1200 x 2400mm (Square Edge)

Knauf Fireshield (now sold as Fire Panel) is a fire-resistant gypsum plasterboard with an aerated core infused with glass fibre and encased in a pink paper facing. The 12.5mm board in 1200 x 2400mm square edge format is the standard sheet for fire-rated linings.

A single layer each side of a partition achieves up to one hour's fire resistance, and a double layer extends that to two hours. Used for fire-rated partitions and ceiling linings and for protected escape routes where enhanced fire performance is required.

Specifications

Brand: Knauf
Type: Fire resistant plasterboard
Length: 2400mm
Width: 1200mm
Size: 12.5mm thick
Finish: Pink paper faced, square edge
Application: Fire-rated partitions, linings and ceilings

Key Features

• Glass fibre reinforced gypsum core
• Up to 1 hour fire resistance single layer
• Up to 2 hours with double layer
• Distinctive pink fire-grade facing
• Square edge for skim or joint finishing
• Standard 1200 x 2400mm sheet
• Cuts and fixes like standard plasterboard
